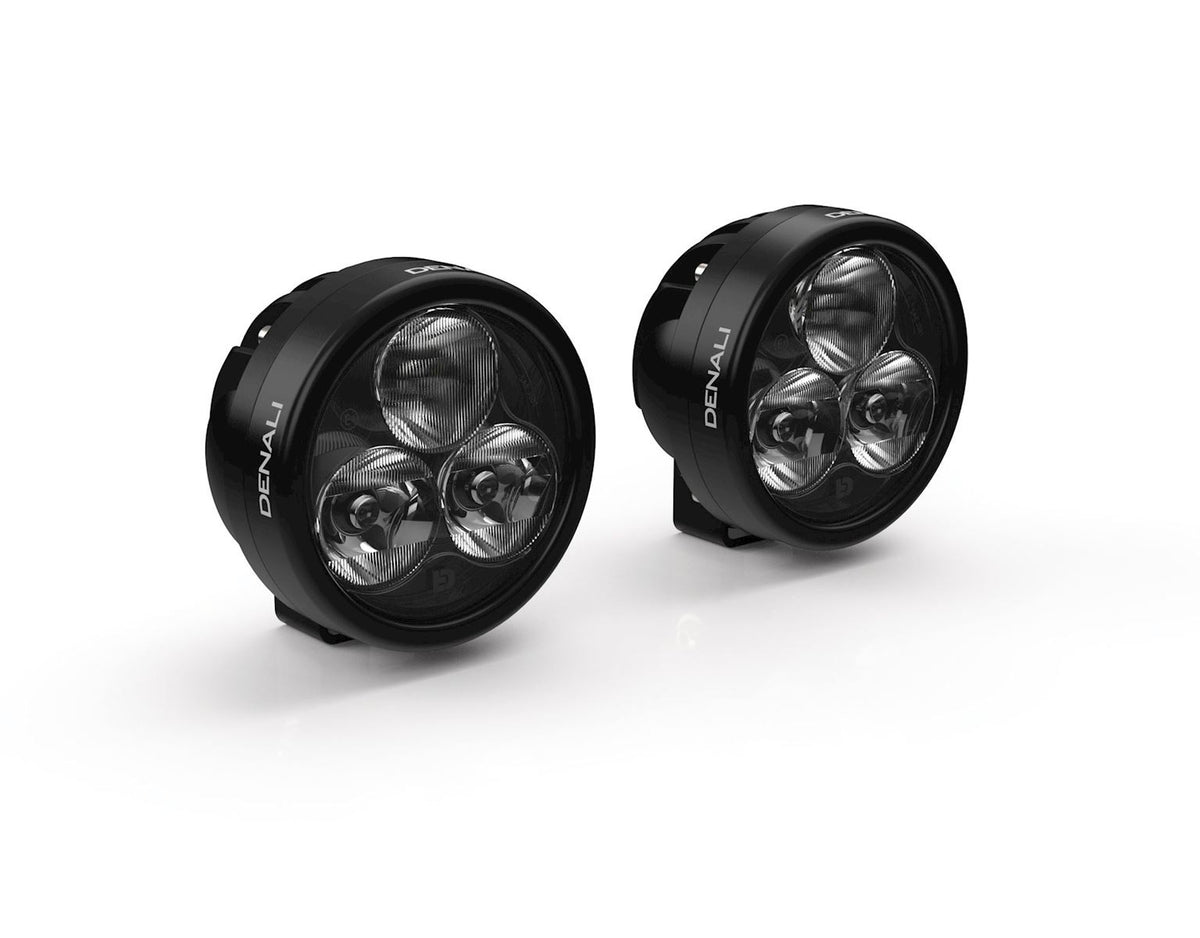

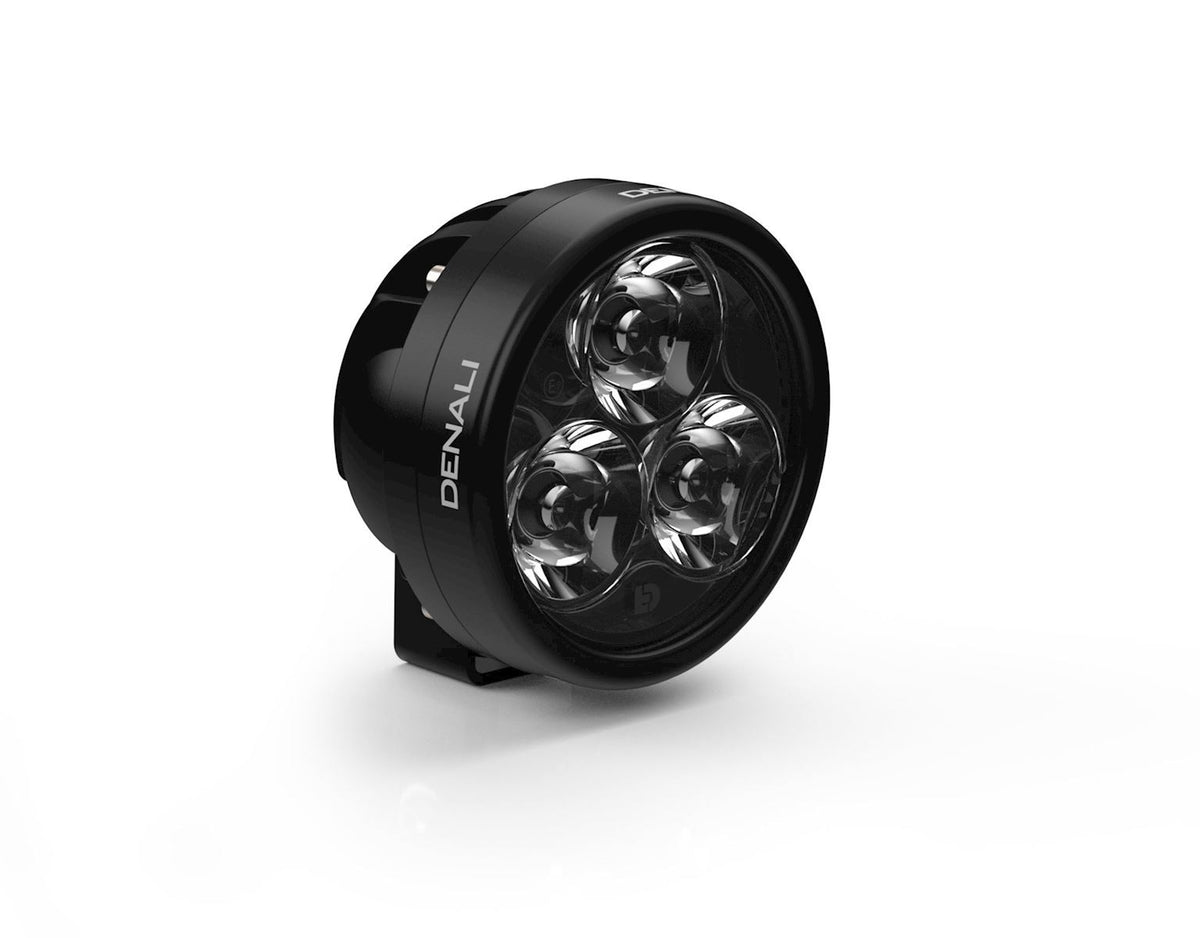

DENALI 2.0 D3 TriOptic LED Driving Light Pod

Denali's new D3 LED lights are built upon a decade of DENALI innovation to deliver the highest performing 36-watt street-legal driving light to hit the market. Their D3 driving light features our signature TriOptic™ beam system that includes a spot and hybrid driving lens with each light pod. Unlike previous TriOptic™ lights, the D3 hybrid driving beam is ECE and SAE compliant to deliver an impressive street-legal high beam in North America and European Union countries. But what if you're not concerned with street-legal precision and just want off-road outrageous? We got you covered too! The D3 spot lens was engineered for maximum beam distance measuring over 1900 feet at 1 lux (per pair). No other 36-watt light even comes close. The spot beam is so impressive it actually outperforms top-tier competitor's lights that are twice its size.



Features

• TriOptic™ Lens System (includes spot and hybrid lenses with each pod)


• Best in class street-legal spot and hybrid beams (SAE/DOT & ECE certified)


• High-Intensity Series Cree LEDs outputting 2100 lumens per pod


• DataDim™ 3-wire smart-dimming technology (compatible with all DENALI dimming controllers)


• DrySeal™ Submersible Waterproof light can withstand the most extreme environments


• Impact PC™ Polycarbonate bezels won't crack, fade or corrode like traditional aluminum bezels.


• LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating

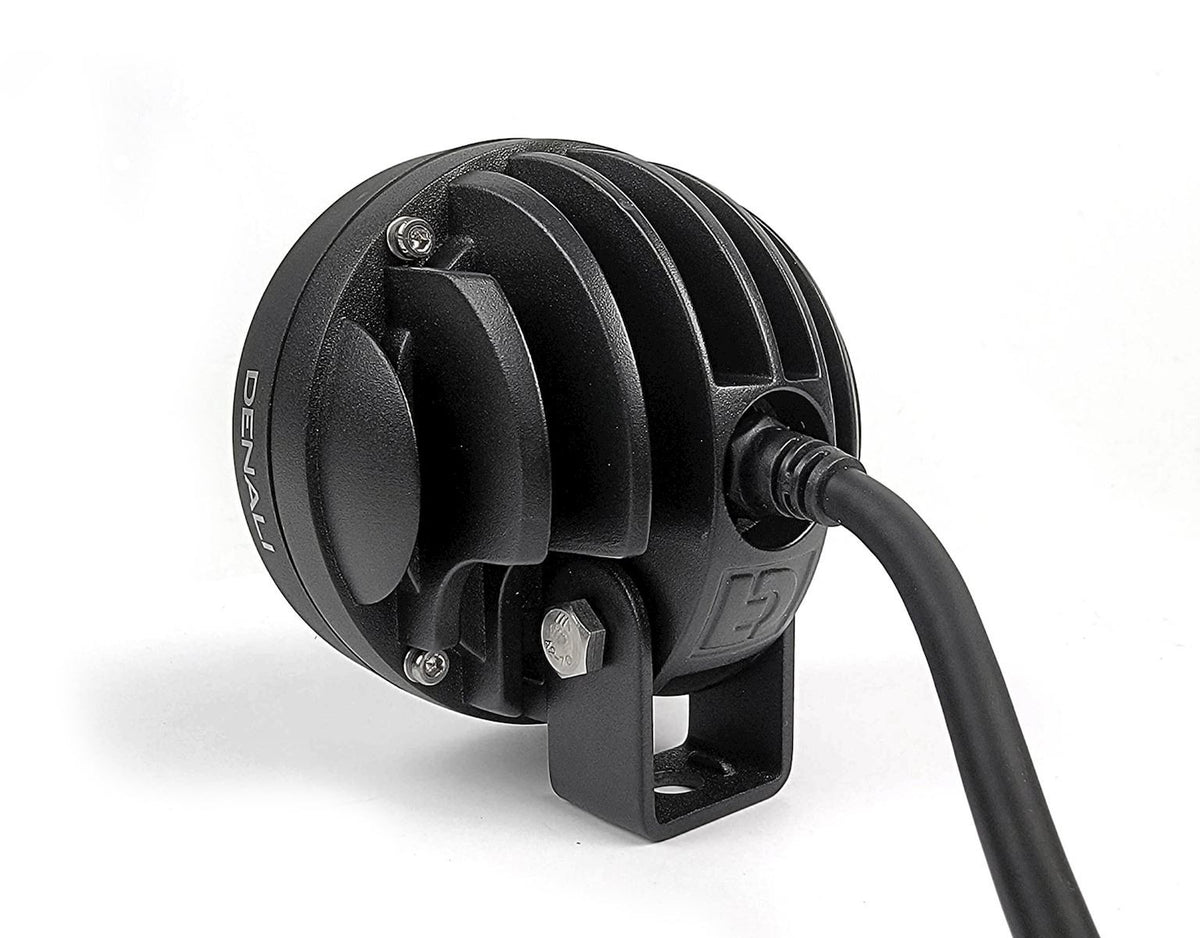

• Low profile mounting bracket with stainless steel hardware included


• Additional SAE/DOT & ECE certified hybrid driving lens included (spot lens installed)


• Amber & Selective Yellow lenses available (sold separately)

What’s in the Box?

• (1x) D3 LED Light Pod (spot lens installed)


• (1x) D3 Hybrid Lens


• (1x) Hinge Mounts with M8 Stainless Steel Hardware


• (1x) Wiring Pigtail

Specs (single pod)

• Pod Size: 3.5" (90mm) Round x 2.62" (66mm) Deep


• LED: (3x) 11 Watt Cree XP-P LEDs


• Power Draw: 36 Watts (3 Amps)


• Lumens: 2100


• DataDim™ Compatible: Yes


• Operating Voltage: 9-32V DC


• IP67 Waterproof & Submersible


• Hybrid Lens Certifications: SAE/DOT J581 & ECE R112


• Spot Lens Certifications: ECE R112

Beam Performance (pair)

Spot Beam

• Beam Distance (at 1 lux): 1910 feet (582 meters)


• Beam Width (at 1 lux): 100 feet (30 meters)

Combo Beam (1 spot, 1 hybrid)

• Beam Distance (at 1 lux): 1520 feet (463 meters)


• Beam Width (at 1 lux): 175 feet (53 meters)

Hybrid Beam (EU certified lens)

• Beam Distance (at 1 lux): 1050 feet (320 meters)


• Beam Width (at 1 lux): 225 feet (69 meters)

Please note: The Hybrid lens (included in this kit) Is the only EU-certified lens for this kit.
