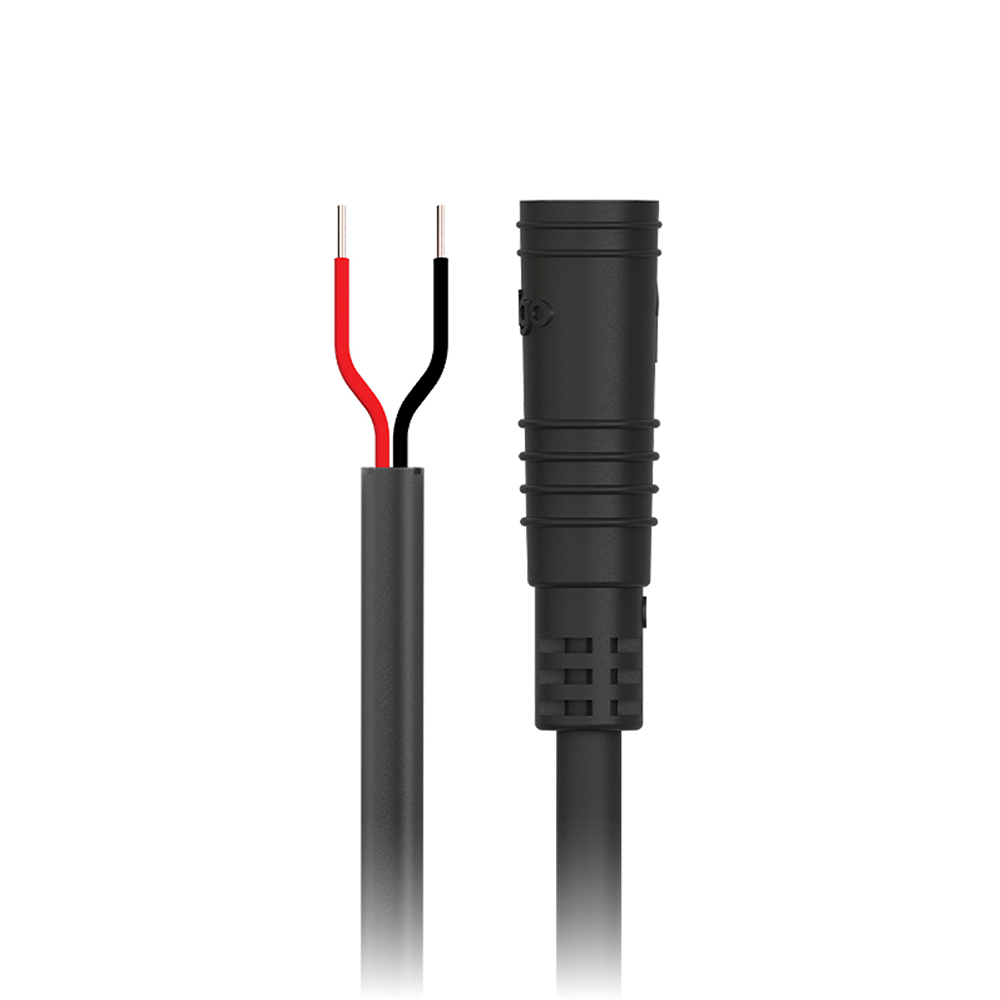

Quad Lock - Shimano Cable

Connect the Quad Lock® Waterproof Wireless Charging Head to your compatible e-bike using our Bosch or Shimano connector cables.

Or use the USB C cable to connect to portable power bank. Minimum 10W QC3.0, recommended 18W or higher.

Due to the complex nature of the installation on e-bikes, we advise the Waterproof Wireless Charging Head is only installed by a mechanic, dealer or expert.

Shimano And Other Drive Units

• For use with Quad Lock® Waterproof Wireless Charging Head to connect to compatible e-bikes
• IP67 connector
• 1.1m cable length
• Confirm cable length will be suitable for your e-bike if it is larger frame size or internal headset and cockpit cable routing
• Shimano cable may be extended by a professional a maximum of 250mm with own sourced suitable extension cable (22AWG thicker, 2-core insulated cable)
• Requires an available Accessory port on e-bike system.
• Do not share port with other accessories such as lights
• Do not connect directly to battery to avoid battery drain
• Recommended installation to be completed by a mechanic
• Weight: 26g (0.917 ounces)
