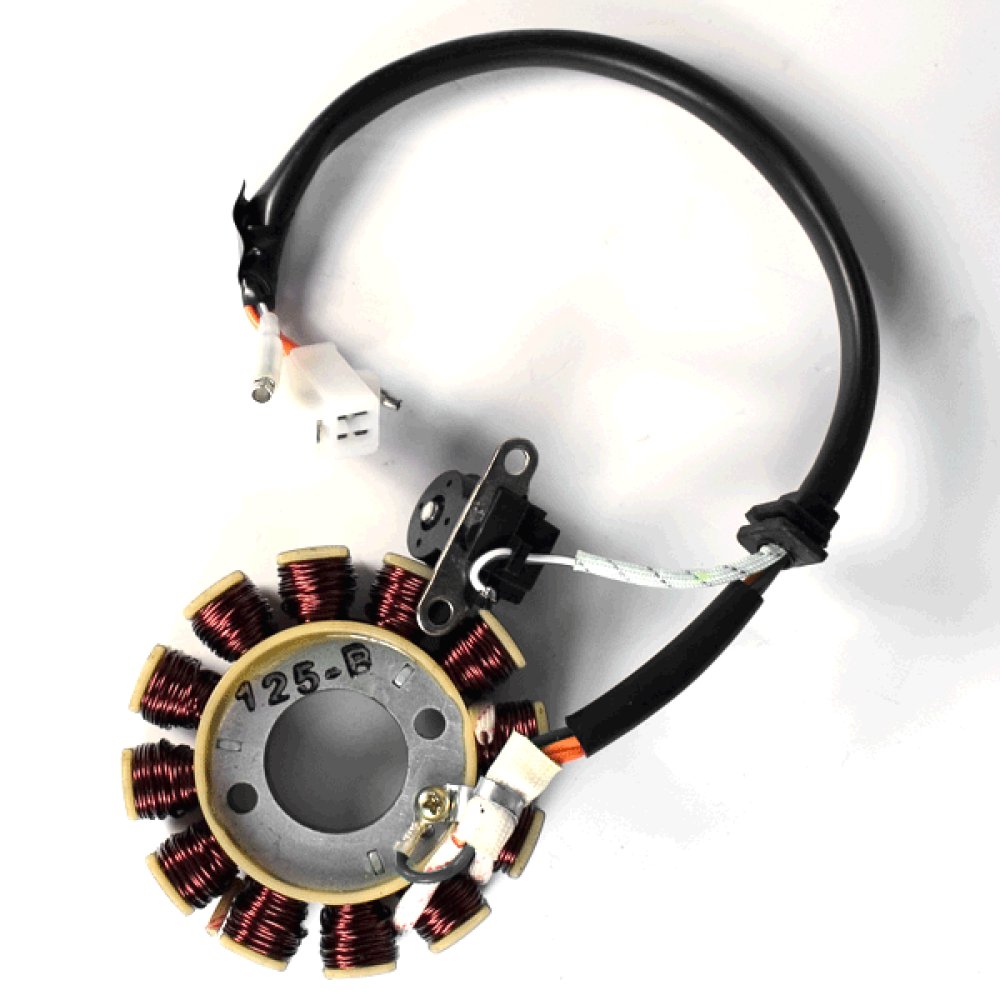

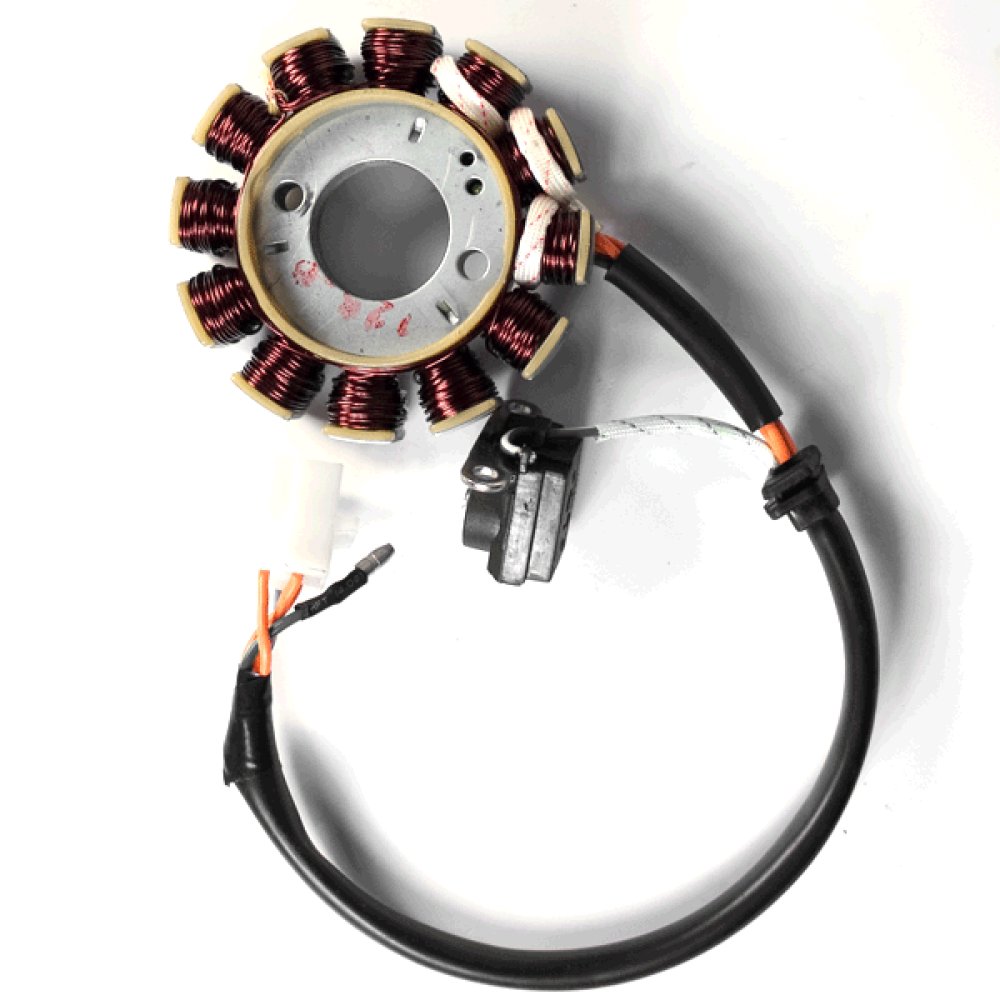

125cc Scooter Stator 152QMI

Specifications

Pickup included: Yes

Quantity of Coils: 12

Quantity of Fixing Holes: 2

Wiring Specification: 3 Wire Female Plug: Orange - Orange - Orange , Female Bullet Wires: Green - Blue/White

Quantity of wires: 5

Diameter across coils: 88mm

Maximum Coil Thickness: 26.5mm

Suitable for the following engine codes

BN152QMI

Suitable for the following models

Direct Bikes 125cc Cobra - DB125T-15D

Direct Bikes 125cc Milan - DB125T-30A

Direct Bikes 125cc Scorpion - DB125T-32A

Direct Bikes 125cc Sports - DB125T-26

Direct Bikes 125cc Spyder - DB125T-22

Direct Bikes 125cc Viper - DB125T-32

Lexmoto FMS 125 - ZN125T-7H

Lexmoto Valencia 125 - ZN125T-K

Pulse Phantom 125 - ZN125T-32A

Sinnis Harrier 125 - ZN125T-22(SINNIS)

Znen Firenze 125 - ZN125T-F

Znen Tommy 125 - ZN125T-E

Znen ZN125T-22 - ZN125T-22
