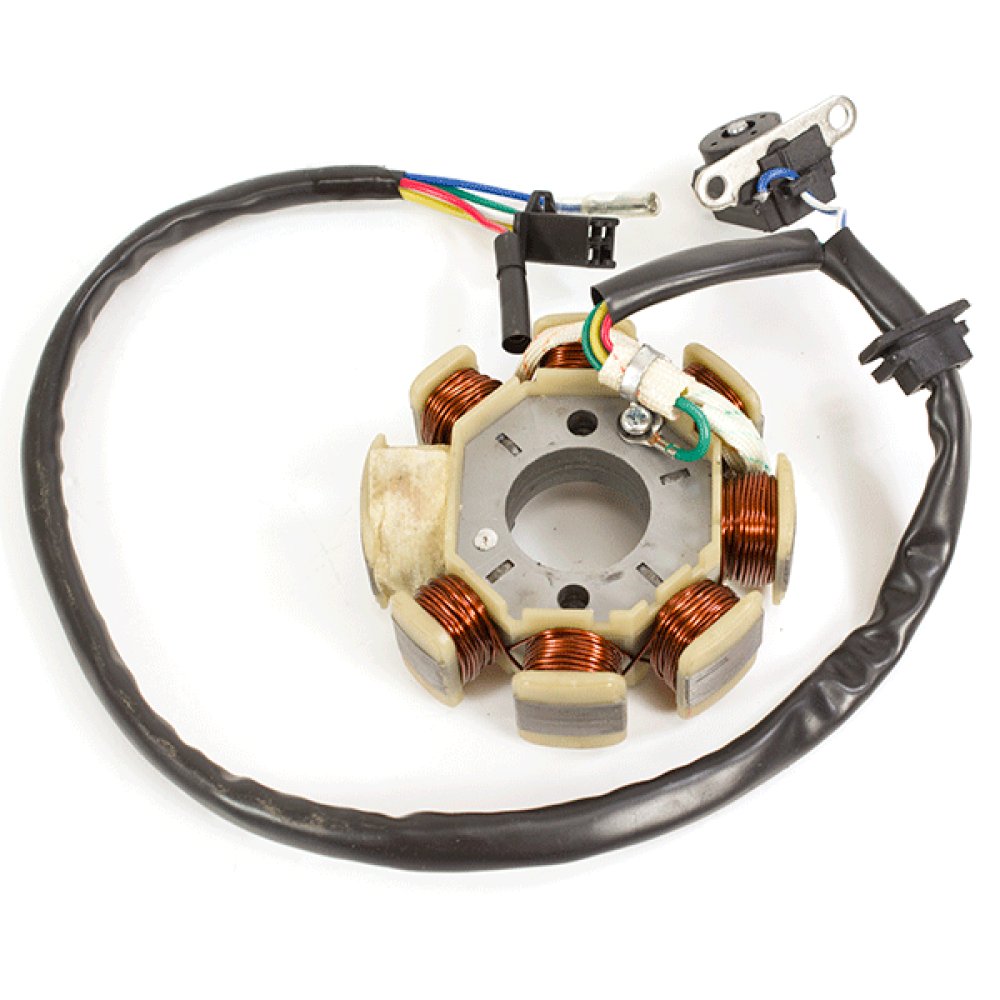

125cc Scooter Stator 152QMI-A

Specifications

Pickup included: Yes

Quantity of Coils: 8

Quantity of Fixing Holes: 2

Wiring Specification: 2x2 Female Plug: Green - White - Yellow, Female Bullet Wires: Red/Black - Blue/White

Quantity of Wires: 5

Diameter across coils: 88mm

Maximum Coil Thickness: 35mm

Suitable for the following engine codes

152QMI-A

Suitable for the following models

Lexmoto Dart 125 - WY125T-100

Lexmoto FMR125 - WY125T-74R

Lexmoto FMX125 - WY125T-108

Lexmoto Verona 125 - WY125T-41

Pulse Lightspeed 2 125 - WY125T-74
